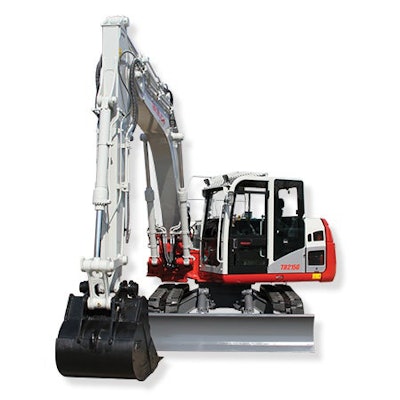

TB2150
Compact Excavator
The TB2150 is the largest and most powerful excavator in the US Takeuchi line. Unique in its class are the standard pivot boom and dozer blade increasing versatility. The cab is completely redesigned and features a heated, air ride suspension seat, automatic climate control, and a color monitor panel to monitor machine performance and view the rear view camera. Multiple auxiliary circuits are standard equipment and make the TB2150 an impressive attachment platform.
B2150 Features
ENGINE
EPA Final Tier 4 Emission Compliant Turbocharged High Pressure Common Rail Fuel Injection DOC+SCR Exhaust After Treatment Automatic Fuel Bleed System Dual Element Air Cleaner Automatic Deceleration Working Modes: Standard, Power and High Altitude Automatic Belt Tensioner Variable Speed Hydraulic Fan Drive High Efficiency Fuel Filters Automatic Preheat
ELECTRICAL
7 Multi-Informational Display Sealed Rocker Switches Rear View Camera Beacon Socket and Lamp Switch Hour Meter Deluxe LED Light Package Side Halogen Work Lights Travel Alarm Horn
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers 2-Speed Travel with Automatic Shift High Torque Planetary Final Drive Heavy Duty Dozer Blade with Float Wrap Around Counterweight 20 Rubber Tracks 24 Steel Tracks (optional) 20 Segmented Rubber Crawlers (optional)
OPERATOR'S STATION
Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Polycarbonate Skylight with Sunshade, AM / FM / MP3 Radio, 24v and 12v Power Outlet ROPS / OPG Level 2 Protection Deluxe High Back Air Ride Suspension Heated Seat Adjustable Arm Rests 2 Retractable Seat Belt Roof Guard Front Window Guard (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Open Center Hydraulics Independent Boom Swing Cushioned Boom and Arm Cylinders Hydraulic Pilot Controls Proportional Auxiliary Controls with Detent Adjustable Auxiliary Flow Dual Boom Cylinders Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm High Pressure Third Auxiliary Circuit Multiple Attachment Presets Flow Selector Valve, Primary Auxiliary Circuit Pattern Change Valve (ISO or SAE) High Capacity Hydraulic Oil Cooler Pilot Accumulator Long Arm with Thumb Mount Arm and Boom Holding Valve with Lift Alarm Pin Grabber Bucket Coupler (optional) Main Pin Hydraulic Thumb (optional)
Function and Efficiency
The DEUTZ TCD 3.6 liter, turbocharged engine features a DOC + SCR diesel exhaust aftertreatment system that has no DPF to maintain. The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed. The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation. Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit. High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments, such as mowers, mulchers, and plate compactors. Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline. Large slew bearing provides greater longevity and stability over the life of
Operator Focused
Deluxe air ride suspension seat with heat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site. The large 7 multifunction color monitor provides you with machine vitals and it has both flow and pressure adjustments for attachment set-up. It also features a split screen mode so you can view the area around the rear of the machine using the rear view camera. Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.
