Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R skid loader to perform your various operations in - transporting, loading, unloading, height positioning and change out attachments within minutes to complete multple projects at a time.

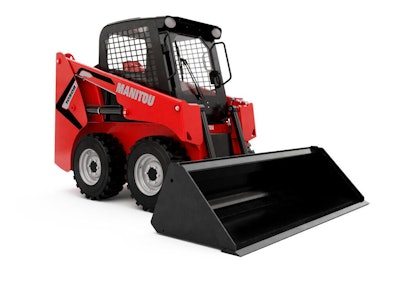

1050R Skid Steer Loader
Height to Hinge Pin (mm): 108.1 (2746)Rated Operating Capacity (kg): 1,050 lbs. (476)Net Power (kW): 33.1 hp (24.7) @ 2800Net Power (kW) 33.1 hp (24.7)Maximum Torque (Nm) 80 ft. - lbs. (108)Rated Operating Capacity (kg) 1,050 lbs. (476)
Operator's Cab
The 1050R features a new, state-of-the-art, fully-adjustable operator's cab.1050R
Sound reduction material within the cab suppresses outside noise for a quieter operator environment.A front-lifting restraint bar with integrated armrests provides personalized comfort and increased safety.Standard high-back adjustable seat and optional air-ride suspension seat or mechanical suspension seat provide enhanced, all-day comfort.Hydraloc System - Brakes and hydraulics are applied automatically whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.Creature comforts include automatic dome light, cup holder, 12-volt outlet, storage tray and multiple adjustable air vents.
Controls
Joystick ControlsDigital color display shows real time fuel consumption, engine RPM's, machine hours, engine diagnostic codes, warning indicators and much more.Two control options include T-Bar or Hand/Foot.All instrumentation is conveniently located in the upper-right and left instrument panels for easy access.Hydraloc system applies brakes whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.
Engine
The 1050R is equipped with an all-new Yanmar Tier IV naturally-aspirated diesel engine.
Make: Yanmar Model: 3TNV88C-KMS Tier IVNet Power (kW) @ rpm 33.1 hp (24.7) @ 2800Maximum Torque (Nm) @ rpm 80 ft.-lbs. (108) @ 1680Displacement (L) 100 cu.in. (1.6)
Automatic glow plug heating system provides superior cold-weather starting.After treatment meets all Tier IV requirements through proven technology.HydraulicsThe 1050R has amped-up hydraulic systems which incorporate intuitive design for precise controllability.
1050R Cows
Auxiliary Hydraulics - Standard (L/min) 14.5 gpm (55)High-Flow Auxiliary Hydraulics - Option (L/min) N/AReservoir Capacity (L) 8 gal. (30.3)
Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.Attachments changes are clean and easy with flat-faced quick couplers that allow for changes by hand instead of tools.Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
Liftarm
The 1050R features an all-new low-profile lift arm.
1050R Dirt
42% more visibility with new low-profile lift arm.Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.
Large engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.Swing-out rear door easily opens on hinges, allowing full access to filters and fluid reservoirs, for servicing and maintenance.Entire ROPS/FOPS assembly tilts rearward with a gas-spring assist for easy internal access to the pumps, hydraulic valve bank and drive motors.All-new cab safety restraint & pull cord safely holds ROPS/FOPS in raised position.Removable plate for easy cleanout of foot area inside ROPS/FOPS
Specifications
A. Overall Operating Height - Fully Raised (mm) 139.6 (3546)B. Height to Hinge Pin - Fully Raised (mm) 107.5 (2731)C. Overall Height to top of ROPS (mm) 70.3 (1786)D. Ground Clearance to Chassis (mm) 6.0 (152)E. Overall Length with 55 Bucket (mm) 114 (2896)F. Overall Length Less Bucket (mm) 88.9 (2258)G. Wheelbase (mm) 34.5 (876)H. Dump Reach at Full Height (mm) 22.8 (579)I. Rollback at Ground Level 29°J. Dump Angle 42°K. Overall Width - Less Bucket (mm) 48.4 (1229)L. Bucket Width (mm) 55 (1404)M. Clearance Circle - Rear (mm) 54.1 (1374)N. Clearance Circle - Front w/o Bucket (mm) 44.1 (1120)O. Clearance Circle - Front w/Bucket (mm) 69.4 (1763)P. Seat to Ground Height (mm) 32.6 (828)Q. Rollback at Full Height 99°R. Dump Height (mm) 84.5 (2146)S. Departure Angle 26°
Standard Tire Size 27x8.5x15 HDEngine Make YanmarModel 3TNV88C-KMS Tier IVGross Power (kW) @ 2800 rpm 34.7 hp (25.5)Net Power (kW) @ 2800 rpm 33.1 hp (24.7)Maximum Torque (Nm) @ 1820 rpm 80.7 ft.-lbs. (109.4)Displacement (L) 100 cu. in. (1.6)Hydraulics Auxiliary Hydraulics - Standard (L/min) 14.5 gpm (55)High-Flow Hydraulics - Optional (L/min) N/AReservoir Capacity (L) 8 gal. (30.3)Electrical Battery (CCA) 12-volt (950)Starter (kW) 12-volt (3.0)Alternator 40-ampCapacities/Weight Rated Operating Capacity (kg) 1,050 lbs. (476)With optional counterweight (kg) 1,175 lbs. (533)Fuel Tank (L) 10.4 gal. (39.4)Travel Speed - Maximum (km/hr) 5.9 mph (9.5)Operating Weight - Approximate (kg) 4,200 lbs. (1905)
