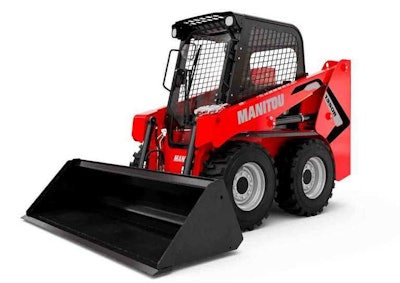

1350R NXT2 Skid Steer Loader
Height to Hinge Pin (mm): 110 (2790)Rated Operating Capacity (kg): 1,350 lbs. (612)Net Power (kW): 44.5 hp (33.2) @ 2800
Performance
Net Power (kW) 44.5 hp (33.2)Maximum Torque (Nm) 108 ft. - lbs. (146.2)Rated Operating Capacity (kg) 1,350 lbs. (612)
Operator's Cab
The 1350R NXT2 features a new, state-of-the-art, fully-adjustable operator's cab.
Sound reduction material within the cab suppresses outside noise for a quieter operator environment.A front-lifting restraint bar with integrated armrests provides personalized comfort and increased safety.Standard high-back adjustable seat and optional air-ride suspension seat or mechanical suspension seat provide enhanced, all-day comfort.Hydraloc System - Brakes and hydraulics are applied automatically whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.Creature comforts include automatic dome light, cup holder, 12-volt outlet, storage tray and multiple adjustable air vents.
Controls
NEW LOW EFFORT control choices now include standard Servo-Assist T-Bar or Servo-Assist Hand/Foot or optional Pilot Joystick controls with Hydraglide ride control system to drastically reduce lever efforts and lower operator fatique.Digital color display shows real time fuel consumption, engine RPM's, machine hours, engine diagnostic codes, warning indicators and much more.All instrumentation is conveniently located in the upper-right and left instrument panels for easy access.Hydraloc system applies brakes whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.
Engine
The 1350R NXT2 is equipped with an all-new Yanmar Tier IV naturally-aspirated diesel engine.Make: Yanmar Model: 4TNV88C-KMSNet Power (kW) @ rpm 44.5 hp (33.2) @ 2800Maximum Torque (Nm) @ rpm 108 ft.-lbs. (146.2) @ 1820Displacement (L) 133.6 cu.in. (2.19)Automatic glow plug heating system provides superior cold-weather starting.After treatment meets all Tier IV requirements through proven technology.
Hydraulics
The 1350R NXT2 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.Auxiliary Hydraulics - Standard (L/min) 18.5 gpm (70)High-Flow Auxiliary Hydraulics - Option (L/min) N/AReservoir Capacity (L) 9.2 gal. (34.8)Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.Attachments changes are clean and easy with flat-faced quick couplers that allow for changes by hand instead of tools.Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.
Large engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.Swing-out rear door easily opens on hinges, allowing full access to filters and fluid reservoirs, for servicing and maintenance.All-new swing-out cooler provides improved access to the engine bay area.Entire ROPS/FOPS assembly tilts rearward with a gas-spring assist for easy internal access to the pumps, hydraulic valve bank and drive motors.All-new cab safety restraint & pull cord safely holds ROPS/FOPS in raised position.Removable plate for easy cleanout of foot area inside ROPS/FOPS
