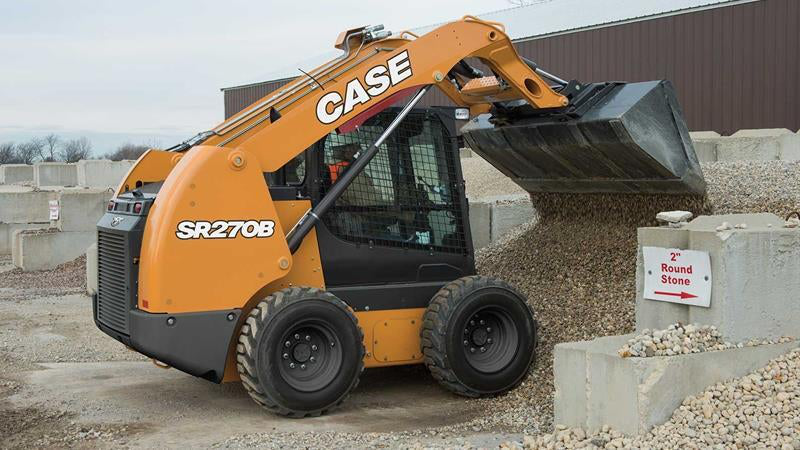

SR270B

CASE Construction Equipment - CNH

SPECIFICATIONS GENERAL DIMENSIONSHeight to bucket hinge pin mm3178Height to top of ROPS mm2002Length without attachment mm3016Length with bucket * mm3646Overall width mm1768Wheelbase mm1322Ground clearance mm203Dump height * mm2562Dump angle Â¡38Dump reach @ max height mm574Angle of departure Â¡24Rollback angle (bucket on ground) Â¡31 SPECIFICATIONSFrame SizeLargeEmissions LevelTier 4F Stage IVPerformance SpecsRated Operating Capacity 50% kg1225ROC with counterweights 50% kg1315Tipping load kg2450Lift cylinder breakout force** kN27.1Bucket cylinder breakout force** kN38.6 ENGINEEngine make - ModelFPT F5H (Turbo)Displacement l3.4Horsepower hp/rpm90 @ 2500Peak torque Nm/rpm383 @ 1400 TRAVEL SPEEDLow range km/h12.4High range (optional) km/h18.5 HYDRAULIC SYSTEMPump flow LPM92Optional high flow LPM143Relief pressure bar210Optional enhanced high flow bar277 WEIGHTSOperating weight kg3681Shipping weight kg3526 SERVICE CAPACITYFuel tank l96.5

SSV65

Kubota Tractor Corp.

SSV65PHC ENGINE Model V2607-CR-TE4Emission certification Tier 4Engine gross power HP (kW) 64 (47.7) / 2700Displacement 159.7 (2615)Cylinders 4Bore and stroke 3.5 (87) Ã 4.4 (110)Aspiration Turbocharged LOADER SPECIFICATIONS Tipping Load.

SSV75

Kubota Tractor Corp.

SSV75 ENGINE Model V3307-CR-TE4Emission certification Tier 4Engine gross power HP (kW) 74.3 (55.4)/ 2600Displacement 203.3 (3331)Cylinders 4Bore and stroke 3.8 (94) Ã 4.8 (120)Aspiration Turbocharged LOADER SPECIFICATIONS Tipping Load.

Sunward USA

2710 Geesling Rd

Denton, TX 76208

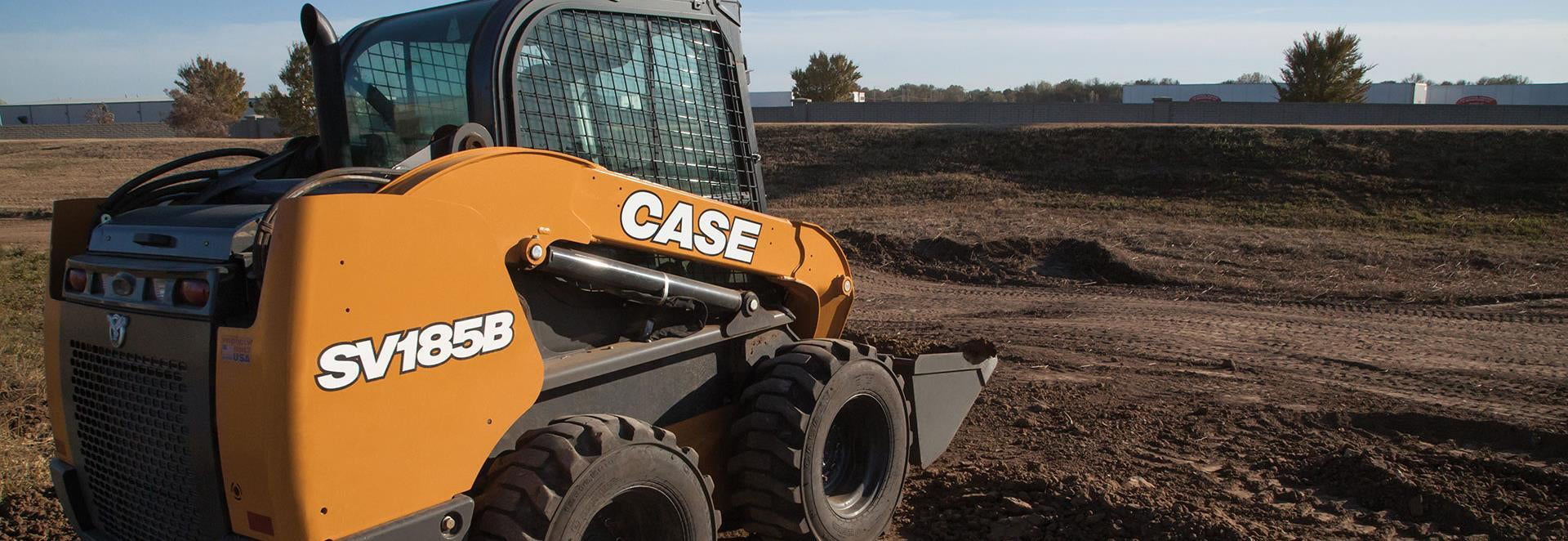

SV185B

CASE Construction Equipment - CNH

SV185B SKID STEER LOADER The SV185B is a simple, compact and powerful skid steer that's easy to own, operate and maintain.

SV280B

CASE Construction Equipment - CNH

SV280B SKID STEER LOADER The SV280B offers large-frame power and performance with the efficiency of a medium-frame machine.

SV340B

CASE Construction Equipment - CNH

SV340B SKID STEER LOADERThe largest and most powerful skid steer in the CASE product line, the SV340B is your all-around solution for handling heavy palletized materials, fast and efficient earthmoving, and running powerful attachments such as stump grinders and cold planers.

SW 28

Wacker Neuson America Corporation

The SW28 brings maximum reach making it ideal for loading and unloading.

SW20

Wacker Neuson America Corporation

The SW20 offers the power and torque needed for any jobsite. This unit delivers 2,000 pounds of rated operating capacity at 50% and is a class leader with lift height up to 124 inches.

SW21

Wacker Neuson America Corporation

The SW21 offers the power and torque needed for any job site. This unit delivers 2,000 pounds of rated operating capacity at 50% and is a class leader with lift height up to 124 inches.

SW32

Wacker Neuson America Corporation

The 100 HP SW32 brings maximum power and efficiency to every jobsite. The SW32 delivers 3,200 pounds of rated operating capacity at 50% and a lift height up to 134,8 inches.

SWL3230

The SWL3230 Wheeled Loader brings speed, reliability, and a surprising amount of power to the table.

Teleskid 3TS-8W (Skid Steer Loader)

It can reach higher, further and deeper than any other skid steer on the market and can access areas you wouldnt have thought possible.

UTILICOR® MC-450

UTILICOR MC-450 With intuitive controls and an integrated water tank, the MC-450 is the perfect attachment for quick cuts and a more productive coring process.

V270 GEN:2

Gehl - A Manitou brand

TECHNICAL FEATURESCapacitiesRated Operating Capacity2767 lbsRated Operating Capacity with Optional Counterweight3000 lbsUnladen weight8150 lbsWeight and dimensionsOverall Operating Height - Fully Raised167 inHeight to Hinge Pin – Fully Raised56 inOverall Height to Top of ROPS81 inDump angle at full height42 °Dump height100 inOverall length with bucket148 inDump reach - Full height32 inRollback at ground29 °Seat to ground height40 inWheelbase49 inOverall width less bucket67 inBucket Width70 inGround clearance8 inOverall length - Less Bucket116 inClearance Radius - Front with Bucket90 inClearance Circle - Front without Bucket56 inClearance Circle - Rear66 inPerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)7 mphWheelsStandard tyres12.00x16.5 HDEngineEngine brandYanmarEngine model4TNV98C-NMSLV Stage VEngine normStage VGross Power (kW)53.70 kWNet Power (kW)52.70 kWMax.

V270 GEN:2

Gehl - A Manitou brand

TECHNICAL FEATURESCapacitiesRated Operating Capacity2767 lbsRated Operating Capacity with Optional Counterweight3000 lbsUnladen weight8150 lbsWeight and dimensionsOverall Operating Height - Fully Raised167 inHeight to Hinge Pin Fully Raised56 inOverall Height to Top of ROPS81 inDump angle at full height42 °Dump height100 inOverall length with bucket148 inDump reach - Full height32 inRollback at ground29 °Seat to ground height40 inWheelbase49 inOverall width less bucket67 inBucket Width70 inGround clearance8 inOverall length - Less Bucket116 inClearance Radius - Front with Bucket90 inClearance Circle - Front without Bucket56 inClearance Circle - Rear66 inPerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)7 mphWheelsStandard tyres12.00x16.5 HDEngineEngine brandYanmarEngine model4TNV98C-NMSLV Stage VEngine normStage VGross Power (kW)53.70 kWNet Power (kW)52.70 kWMax.

V330 GEN:2

Gehl - A Manitou brand

V330 COMPACT LOADERS The GEHL V330 offers visibility, intuitive controls, precise movement and an ergonomic operator station.

V330 GEN:2

Gehl - A Manitou brand

V330 COMPACT LOADERS The GEHL V330 offers visibility, intuitive controls, precise movement and an ergonomic operator station.
