Electronic Distance Measurement

Electronic distance measurement (EDM) equipment is used in surveying, essentially capturing the distance between two theodolites. Total stations, meanwhile, can be used to measure distance and angles.

Devices known as total stations share similarities with theodolites and can be used to measure distances as well as angles. The telescope on a transit theodolite will also rotate, enabling back-sighting with data collected and made available for triangulations through a built-in computer interface.

36 Results

Section: Product Categories > Technology and Software > Site Data Capture > Electronic Distance Measurement

BeamerOne

Turn 2D/3D blueprints into interactive field tools by projecting them on jobsite surfaces using an accurate laser.

Construction Estimating 101

Easy to use cloud based measuring tool for quantity and material takeoffs.No more printing plans and spending hours in the office.

ConX

Level 2/11 York St

Sydney, NSW

HCS T1

Concrete sensors for monitoring temperature and strength using Bluetooth® on-site data collection Monitoring: Strength and temperature Data collection: Bluetooth Data collection frequency: Strength and temperature: every 15 minutes for the first 60 days

HCS T2

Automatic concrete sensors for monitoring temperature and strength using remote data collection Monitoring: Strength and temperature Data collection: Automatic via Hilti Gateway Data collection frequency: Strength and temperature: every 15 minutes for the first 60 days

Hexagon

Lilla Bantorget 15, SE-111 23

Stockholm

Hexagon develops laser scanner hardware and software for on-field data capturing applications.

Hilti Inc.

7250 Dallas Parkway

Plano, TX 75024

Komatsu America Corp.

P. O. Box 5049

Chicago, IL 60008-5049

Leica BLK360

The new BLK360 creates photorealistic, accurate digital twins within just 20 seconds.

LightYX

22 Rothschild Blvd

Tel Aviv-yafo, Tel-Aviv

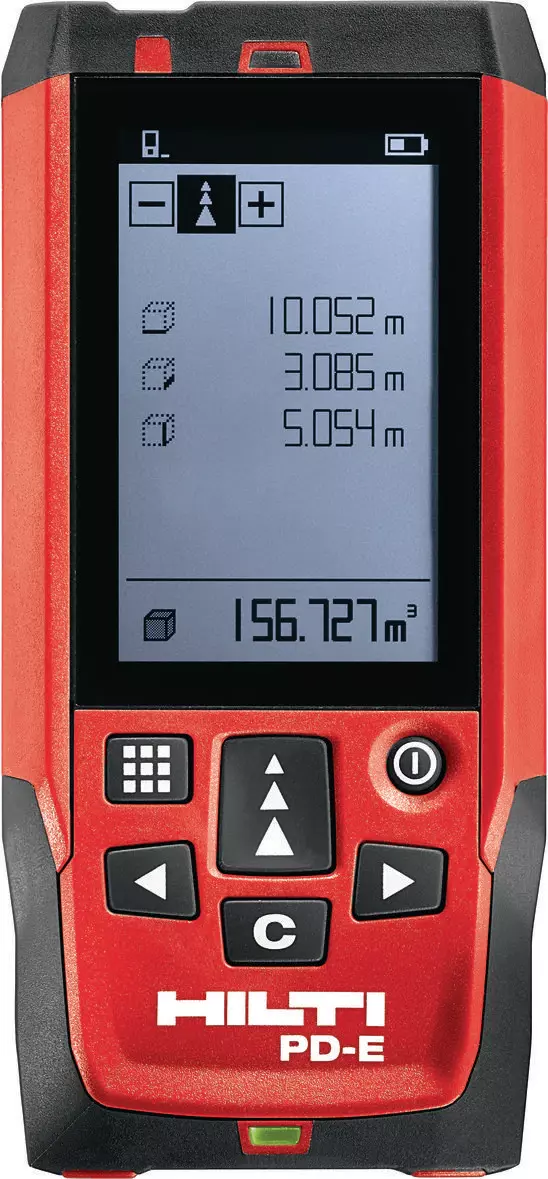

PD-E

Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft

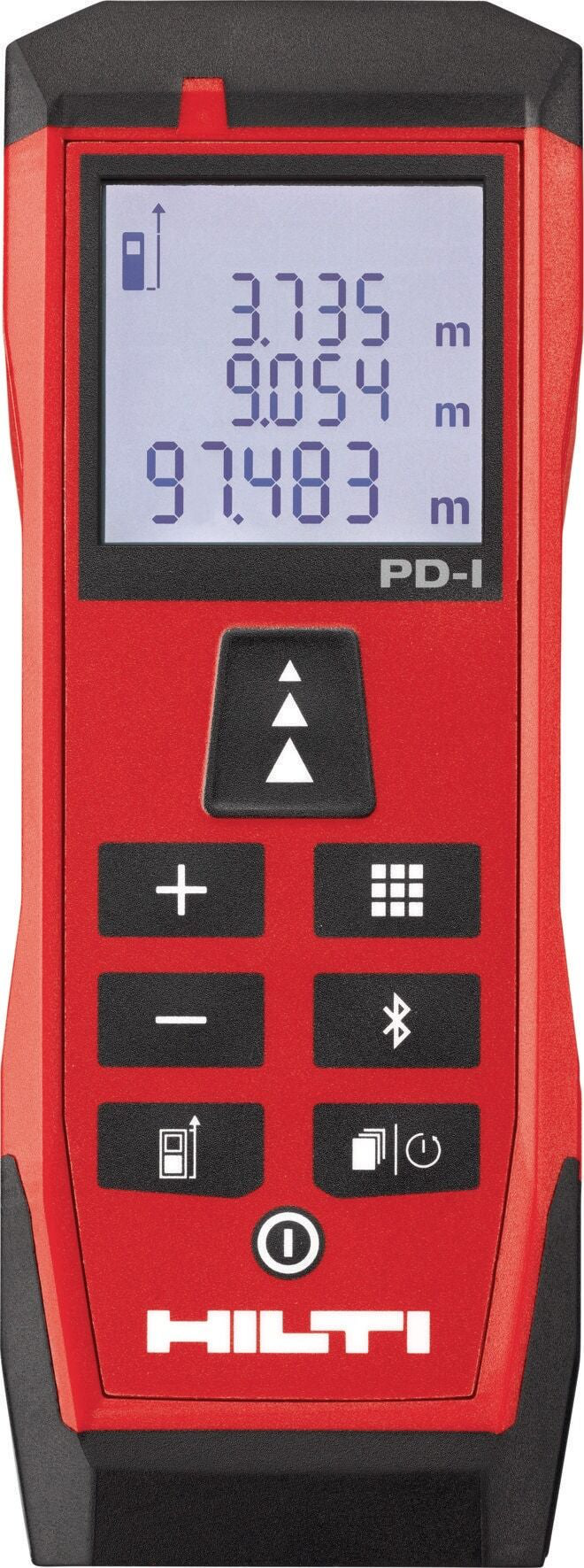

PD-I

Robust laser meter with smart measuring functions and Bluetooth® connectivity for interior applications up to 100 m / 330 ft

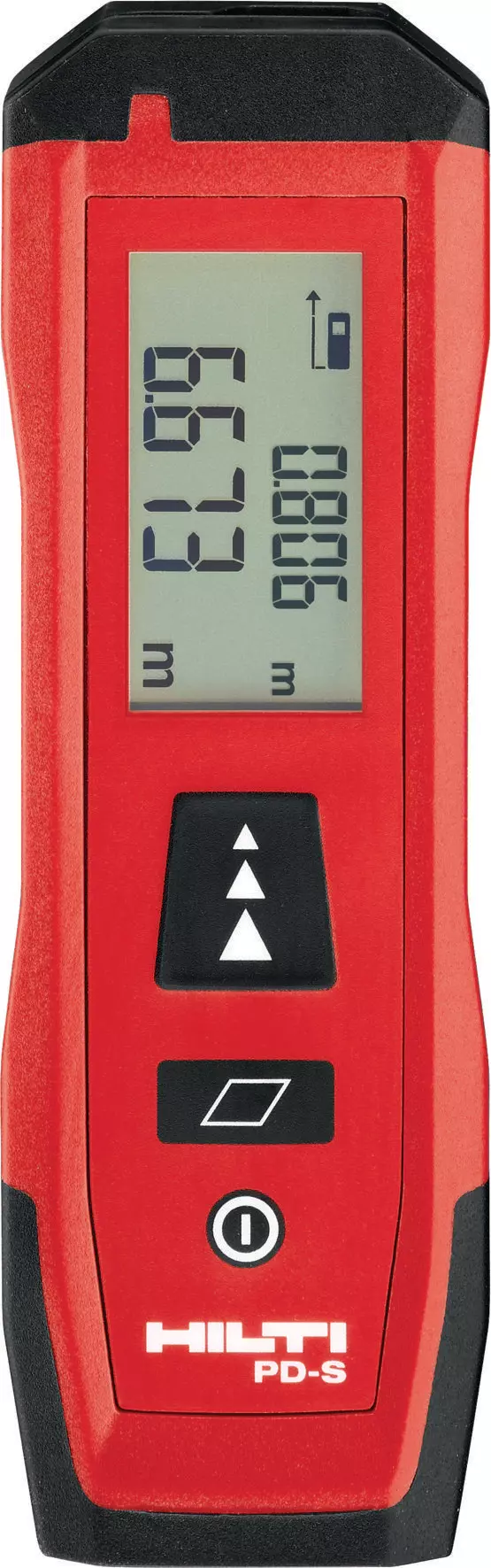

PD-S

Easy-to-use laser meter for distance and area measurements up to 60 m / 200 ft

PLC 400

Rugged field tablet for layout applications IP protection class: IP 65 (EN 60529) Maximum operating time: 8 h Battery type: Li-Ion

PLC 600

Layout tool controller with fast computing power and 10 screen, for jobsite stake-out, surveying and BIM-to-Field layout using all Hilti advanced layout tools IP protection class: IP 65 (EN 60529) Maximum operating time: 10 h Battery type: Li-Ion

PLT 300

Automated construction layout tool to speed-up jobsite stake-out using digital methods and BIM Distance measurement accuracy: ±3 mm + 10 ppm Operating distance range of remote control (diameter): 5 - 328 ft IP protection class: IP 55 (EN 60529)

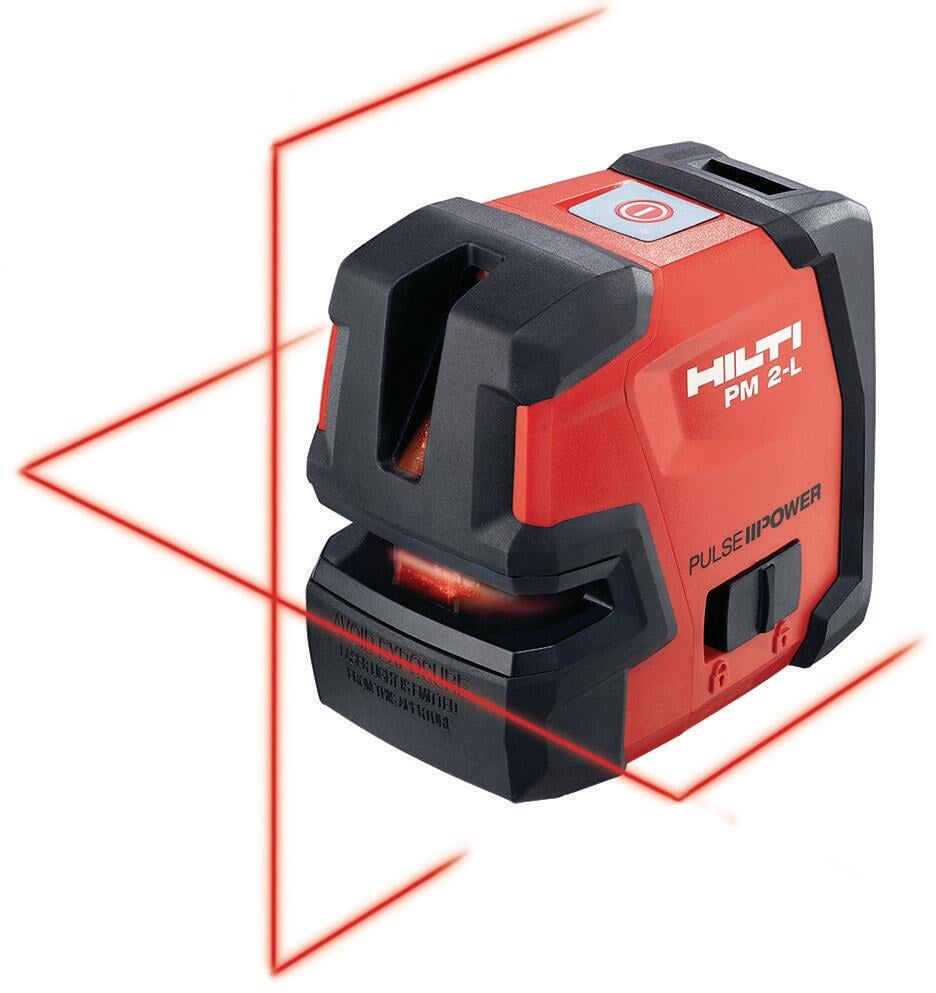

PM 2-L

Line laser with 2 lines for leveling, aligning and squaring with red beam

PM 2-LG

Line laser with 2 lines for leveling, aligning and squaring with green beam
