20,000-lb Capacity Sliding Jib Hooklift

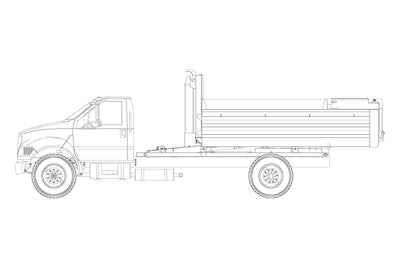

Discover how the Stellar® Slider20-S Hooklift can make your day-to-day operations more efficient. The Slider20-S is a body handling system mounted on a truck chassis that is capable of loading, unloading and dumping various bodies with lengths ranging from 10? (3.0 m) to 14? (4.2 m) with the use of a sliding rectangular jib. The rectangular jib reduces flex and provides greater structural integrity. The Slider20-S can accommodate capacities up to 20,000 lbs (9,071 kg). The maximum dump angle is 60° with all hook heights.
The Slider20-S is equipped with a telescopic jib and is available with 35.63? (905 mm) or 54? (1,372 mm) hook heights that are adjustable either manually or hydraulically to allow for working with various length and hook height containers.
