Designed for customers who need some of the existing system’s functionality – but not all of them – the new ‘Lite’ and ‘Start’ packages unlock varying degrees of access to the core functions of Pass Mapping and Compaction Measurement Value (CMV) Mapping, all powered by the 10-in. Volvo Co-Pilot touchscreen.
With these tailored solutions, customers can now more easily unlock the possibilities of intelligent compaction, receiving only the information that is most useful to them and in turn achieving compaction results.

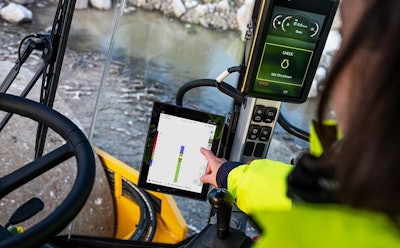

Volvo CE Compact Assist.
Smart Packages
Customers can now choose from three packages from Volvo CE’s suite of Compact Assist tools – whether they are looking for simple compaction measurements right through to complete tracking of both the coverage and compaction of the material.
- Lite: The first of the two new bundles, this option is for those taking the first steps towards improving the quality of their compaction work. It integrates a simple compaction gauge and rear-view camera within the Volvo Co-Pilot monitor, allowing the operator to track the progress of current and recently completed compaction with full visibility behind the machine.
- Start: The other latest option combines all the functionality of the Lite package, plus the ability to see completed work across the entire jobsite. With increased functionality, it uses GPS data to provide the operator with a clear map of passes and CMV mapping.
- Compact Assist: Offering the fullest functionality of the existing Compact Assist solution, this option provides everything that the Start package boasts, as well as location and data recording, enabling the creation of reports on the finished job and access to details on the performance of the roller.
Intelligent Compaction Features
Since its launch, Volvo CE’s Compact Assist has been the industry standard when it comes to intelligent compaction tools. Available on the company’s SD75B and SD115B soil compactors, it facilitates a more successful compaction process, helping operators understand where the ground has been adequately compacted and where more attention is needed – information that is useful when working on large jobsites.
One of its essential features is Pass Mapping, where customers can visualize the whole job and keep track of where they have compacted, making it possible to see where work is still required and in turn saving time and money.
Another key tool is CMV mapping, whereby customers are given a complete image of the load bearing strength of the jobsite allowing them to identify a soil mixture that is too wet, for example, or any buried infrastructure. This helps operators identify areas which require additional compaction or further investigation.
Volvo CE Compact Assist.
Integration and Availability
With these new more-tailored packages, customers can better integrate the Compact Assist solution into the day-to-day work of their Volvo Soil Compactors, all the while assured of the same great compaction results.
While these packages have been created for Volvo Soil Compactors, Compact Assist is also available for Volvo Asphalt Compactors, including Pass Mapping, Temperature Mapping, as well as Density Mapping and Stiffness (CMV) Mapping tools.
