Tandem Vibratory Rollers

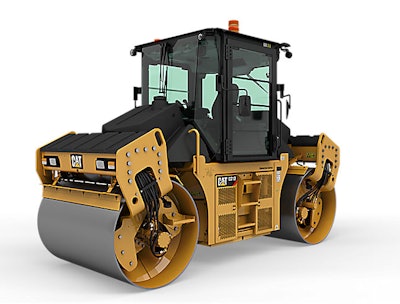

CD10 Solid Drum
KEY SPECS
Operating Weight 19908 lbStandard Compaction Width 67 inGross Power 101.9 HP
Overview
The CD10 is a 10 metric ton vibratory compactor equipped with 1700 mm (67Â) drums. This high production model delivers excellent mat density, good visibility and comfort, fuel efficiency with Eco-mode, and an industry leading water spray system. This model can be equipped with Cat Compaction Control that provides temperature mapping and pass-count mapping as well as Machine to Machine communication for more efficient performance. It also offers a wide range of vibratory system choices including Oscillation, or a 2 amplitude,2-frequency system.
FEATURES AT A GLANCE
EXCEPTIONAL VISIBILITY AND CONTROLVIBRATORY SYSTEM CHOICESCAT COMPACTION CONTROLSMOOTH OPERATING POWERTRAINCOMFORTABLE OPERATING ENVIRONMENTThe machine controls and LCD display are integrated with the pivoting adjustable seat, and move with the operator. Seating options include vinyl for open-platform configurations and cloth for cab, both can be equipped with a heated option. An optional deluxe highback air-ride seat is also available. Other comfort features include a vibration-absorbing floor mat, 12-volt power receptacle that supports communication devices, wide-width seat belt, cup holders and a lockable storage compartment.
FINGERTIP CONTROL
The multi-function propel lever with integrated controls for water spray on/off, drum offset, vibratory control, and optional edge cutter height adjustment enables the operator to work with confidence.
LCD DISPLAY
The back-lit LCD display includes machine data and diagnostics. It is integrated with the seat, so it remains in same position even as the seat pivots. A built-in lockable anti-vandalism cover offers protection. The display provides multiple language options, split-screen capability, and indicators for ground speed, vibrations per minute, and fuel level.
CONVENIENT CONSOLE
The console is integrated with the seat, providing fingertip access. Soft keys with tactile feel provide instant feedback to the operator for intuitive operation. The armrests are adjustable and can be tailored to the operator for additional comfort.
OSCILLATION TECHNOLOGY
Cat Oscillation Technology combines standard vibration on the front drum with oscillatory vibration on the rear drum. The oscillation system performs effectively on thin lifts and near sensitive structures such as buildings, bridge decks, and over underground utilities. The design utilizes proven pod-style eccentric weights and has a 2 year, 2000 hour service interval. A durable power transmission employs a unique belt-drive design that delivers 2 times the load capacity of timing belt systems. A hardened drum shell option offers excellent long-term strength on a variety of mix designs.
2 AMPLITUDE, 2 FREQUENCY VIBRATORY SYSTEM
The 2-amplitude and 2-frequency vibratory system can be tailored to thin and thick lifts. A single switch automatically matches amplitude and frequency for simple operation.
PERFORMANCE FEATURES
The vibratory systems offer multiple options that help fine-tune performance on thick challenging lifts. The automatic speed control feature makes it easier to maintain consistency and impact spacing requirements. Also, an auto vibe function helps prevent over-compaction and contributes to uniformity.
TEMPERATURE SENSORS
Dual infra-red sensors mounted on the front and rear of the machine deliver real-time readings that keep the operator informed of when to begin rolling and when to stop. This system helps operators avoid tender-zones that often occur in the 104°-110° C (219°-230° F) temperature range.
PASS-COUNT MAPPING
Pass-count mapping helps operators achieve target density and increase roller efficiency. The system records and monitors pass patterns in order to display coverage. The system also helps operators optimize drum overlap, simplify nighttime operation, eliminate second guessing and prevent incomplete passes such as stopping short.
TEMPERATURE MAPPING
Temperature mapping provides a visual readout of mat temperature in order to keep the machine in the proper temperature range. The system records and monitors temperature for future analysis of the proper temperature range.
MACHINE TO MACHINE COMMUNICATION
Machine to Machine Communication improves worksite efficiency by allowing operators to monitor fleet patterns. The system allows operators to monitor rolling patterns of other machine and pickup where they left off. It also simplifies night-time operation when lighting conditions make it difficult to see after the first pass.
CAT C3.4B ENGINE
The C3.4B engine provides 75 kW (101.9 hp) of power and meets emissions equivalent to U.S. EPA Tier 4 Interim and EU Stage IIIB. It features an electronic control module (ECM), providing optimal performance through precisely synchronized timing and fuel delivery. The ECM enables advanced troubleshooting and diagnostic capabilities using Electronic Technician (Cat ET). Cat dealers are the single-source providers of all machine and engine warranty service (a Cat exclusive).
HIGH CAPACITY COOLING SYSTEM
The large capacity cooling system keeps the operating temperatures low, even in extreme conditions. The system directs warm air away from the operator for a more comfortable operating environment.
PRODUCT SPECIFICATIONS FOR CD10 SOLID DRUM
cloud_download DOWNLOAD print PRINTCOLLAPSE ALL
WEIGHTS
Operating Weight 19908 lbMaximum Operating Weight with Cab 21475 lbStandard Operating Weight with Cab 19908 lbStandard Operating Weight with ROPS 19335 lbMaximum Operating Weight with ROPS 20880 lb
OPERATING SPECIFICATIONS
Standard Compaction Width 67 inDrum Offset 51 inMaximum Compaction Width 118 inTravel Speed - Maximum 7.5 mile/hStatic Linear Load 148 lb/in
ENGINE
Gross Power 101.9 HPEngine Model Cat C3.4B with ACERT Technology
DIMENSIONS
Overall Length 14.1 ftWheel Base 10.25 ftHeight - With ROPS/FOPS 9.6 ftOverall Width 74 inDrum Diameter 44 in
VIBRATORY SYSTEM
Drum Width 67 inVibration Selection Independent per drum, front only, rear only, bothNominal Amplitude - Low 0.013 inCentrifugal Force per Drum - Minimum 6092 lbCentrifugal Force per Drum - Maximum 28977 lbNominal Amplitude - High 0.032 in
SERVICE REFILL CAPACITIES
Fuel Tank Capacity 50 gal (US)Water Spray Tank Capacity 198 gal (US)
CD10 SOLID DRUM OPTIONAL EQUIPMENT
print PRINTAIR CONDITIONINGAIR SUSPENSION SEAT W/HEATBIO-DEGRADEABLE OILCAT COMPACTION CONTROLEDGE CUTTERFREEZE PROTECTION KITHALOGEN LIGHTSHIGH INTENSITY DISCHARGE LIGHTSIRH COMPLIANTLED LIGHTINGMACHINE TO MACHINE COMMUNICATIONMIRRORSOFFSET HITCHPRODUCT LINKROADING LIGHTSRECORDING MODULE - CAB ONLYROPS/FOPS CABTEMPERATURE INDICATORWARNING BEACONWATER DISTRIBUTION MATS
