Supervac Super Updraft Parking Area Sweeper

93c294ee
Aa855657

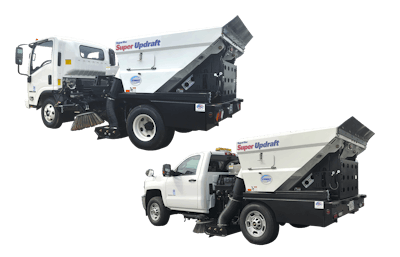

Schwarze Industries revolutionized the sweeping industry with their cutting-edge product, the Super Updraft. This innovative sweeper is not just an upgrade; it's a leap forward in technology and design. The Super Updraft takes the already popular Updraft model and expands on it, offering an additional cubic yard of hopper capacity. This increase in capacity doesn't come at the cost of size or weight. The Super Updraft maintains a low height of 6'10” and a weight that remains below the chassis' GVW rating even when full.

The Super Updraft doesn't just offer increased capacity. It also introduces several new features, including larger dual storage lockers and a choice of one of three auxiliary engine options on a Three Quarter Ton V8 chassis. These features make the Super Updraft a versatile and customizable solution for sweeping needs.

But the Super Updraft truly shines in its ability to meet customer needs. This sweeper was designed with the customer in mind, fulfilling the needs of those who require more capacity in a low-profile package. Its low profile makes it perfect for areas where height is a concern, such as parking garages.

Schwarze Industries is proud of the Super Updraft and was thrilled to unveil this innovative product at the National Pavement Expo in Cleveland, Ohio. The expo provided the perfect platform to showcase the Super Updraft to sweeping contractors nationwide.

The Super Updraft is more than just a sweeper. It's a testament to Schwarze Industries' commitment to innovation, quality, and customer satisfaction. If you're looking for a sweeping solution that offers superior capacity, versatility, and a customer-focused design, look no further than the Super Updraft.

Specifications

Chassis

  • Make: Isuzu NPR; Chevy 2500HD; Ford F250
  • Dimensions: 221 in (Length), 82 in (Width)
  • Steering: Left side
  • Fuel: Diesel; Gas
  • Lighting: Chassis light standard; Barlight & strobe lights optional
  • Accessories: Backup camera

Debris Pickup System

  • Technology: Regenerative Air
  • Type: Sweeping head with debris-moving blast & suction
  • Width: 82 in without brooms, 94 in with one broom, 94 in maximum width
  • Surface Area: 1,886 sq in
  • Construction: 10 gauge abrasion-resistant steel with rubber seal flaps
  • Skids/Dirt shoes: Tungsten carbide skids
  • Operation Direction: Forward & reverse
  • Suspension Head/Main Broom: 2 trailing arms; 4 adjustable springs
  • Control: Hydraulic raise & lower
  • Hopper Connection: Two 10 in hoses
  • Cleaning Assist: Manual clean
  • Optional Configuration: Curb blower instead of gutter broom

Standard Sweeper Engine

  • Make: B&G Vanguard Big Block; Air cooled
  • Type: 2 cylinder air cooled gasoline
  • Displacement: 54.68 cu in
  • Horsepower: 25 hp @ 3600 rpm
  • Torque: 52.2 ft lb @ 2200 rpm
  • Air Cleaner: Dual Element
  • Oil Filter: Full-flow spin-on
  • Stroke: 3.07 in
  • Bore: 3.37 in
  • Safety Shutdown: Automatic
  • Throttle Control: Electronic
  • Protection: Shielded
  • Optional Engine: Kohler; Honda

Control System

  • Controls: Backlit sealed rocker switches; Throttle control; Gooseneck LED panel light
  • Instrumentation: Tachometer; Hourmeter
  • Voltage: 12 volt
  • Alternator: 120 amp
  • Circuit Breakers: Resettable type

Hydraulic System

  • Type: (Optional) Fixed displacement gear
  • Pump Capacity: 8 gpm @ 1800 rpm per section for 16 gpm total
  • Drive: Belt
  • Max Pressure: 2250 psi
  • Reservoir: 3 gal
  • Filter: 10 micron; spin on
  • Suction Strainer: 100 mesh
  • Protection: Pressure relief valve
  • Controls: Electro-hydraulic

Fan System

  • Type: Closed-face radial Whisperwheel
  • Drive: Direct via multi-groove belt
  • Construction: Welded abrasion-resistant steel
  • Balance: Less than 1.5 grams on 2 sides
  • Diameter: 24 in
  • Housing Lining: Bolt-in corded rubber
  • Mounting: Pillow block bearings
  • Vacuum Enhancement: Fan leaf bleeder door for heavy/light material with in-cab indicator

Brooms

  • Type: Vertical digger; wire or poly
  • Location: Left forward of pickup head
  • Diameter: 26 in
  • Drive: Hydraulic
  • Suspension: Torque-sensing spring
  • Wear Adjustment: Automatic
  • Down Pressure: Manual
  • Speed: Variable; non-reversing
  • Segments: 2, disposable
  • Tilt Angle Adjustment: Manual
  • Damage Control: Object avoiding lateral flexibility
  • Visibility: Parabolic mirror optional

Debris Hopper

  • Volume Capacity: 3.0 cu yd
  • Construction: Stainless
  • Dump Angle: 88 degrees
  • Floor Angle: 0 degrees
  • Lifting: Twin hydraulic cylinders
  • Dump Door: Manual open, close at the rear
  • Inspection: 1 door on each side of the hopper
  • Dump Height: 69 in
  • Debris Screens: Drop down
  • Safety: Dual body props; 4-way LED flashing lights; rearview camera; backup alarm
  • Storage: Shovel storage; Toolbox and rear trash bag rack optional

Dust Control System

  • Type: Optional electric diaphragm pump with run-dry capability
  • Capacity: 25 gal
  • Tank Construction: Polyethylene
  • Filter: 50 mesh; Cleanable
  • Fill Diameter: 3 in
  • Fill Hose: Optional
  • Controls: Electric; in-cab
  • Nozzles: 2 at broom; 1 at sweeping head; 2 inside hopper; across front bumper
  • Water Level Indicator: At the water tank
  • Water Pressure: 70 PSI

Backup Hydraulic System

  • Type: N/A
  • Function: N/A

Miscellaneous

  • Paint: One coat of sealer/primer and two coats of Dupont imron elite polyurethane in standard white color; Special colors or graphics wrap optional
