Supervac Updraft Parking Area Sweeper

93c294ee
C04c0e45

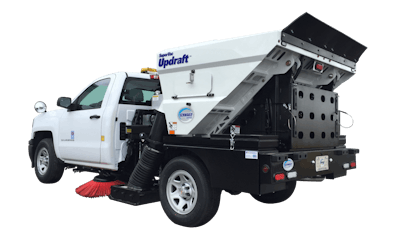

Introducing the Schwarze SuperVac Updraft, a paragon of industry-leading technology and superior craftsmanship. This isn't just any ordinary street sweeper; it's an investment in quality, performance, and longevity.

Let's start with the chassis. You can choose between a fuel-efficient V6 or a turbo 4-cylinder chassis. Both options are designed to maximize performance while minimizing environmental impact. Your choice, your power!

The heart of the SuperVac Updraft is its fully welded stainless steel hopper. Not only does it provide high corrosion and abrasion resistance, but it also offers increased structural strength. This isn't a hopper that will let you down - it's a hopper built to last.

But what's a superior machine without superior safety? The SuperVac Updraft is equipped with all LED safety lighting, ensuring maximum visibility at all times. Plus, the external stainless steel inspection door latches and easy-open lever allow you to open the dump door from ground level – a testament to our commitment to safety and convenience.

Under the hood, you'll find a sophisticated electronic fuel injection 25 HP auxiliary engine. This beast of an engine, combined with the industry-leading Schwarze WhisperWheel Fan Technology, ensures unrivaled performance and efficiency.

And did we mention the optional extras? Choose between a gutter broom or curb blower to suit your specific needs. It's customization at its finest!

The Schwarze SuperVac Updraft isn't just a product; it's a promise. A promise of quality, reliability, and superior performance. So, why settle for anything less? Choose Schwarze Industries. Choose excellence. Experience the difference today!

Specifications

Chassis

  • Make: Chevy 1500, Chevy 2500HD, Ford F150
  • Length: 221 inches (5,613 mm)
  • Width: 82 inches (2,083 mm)
  • Steering: Left side
  • Fuel: Gas
  • Lighting: Chassis light standard; Barlight & strobe lights optional
  • Accessories: Backup camera

Debris Pickup System

  • Technology: Regenerative Air
  • Type: Sweeping head with debris-moving blast & suction
  • Width without brooms: 82 inches (2,083 mm)
  • Width with one broom: 97 inches (2,464 mm)
  • Max. width: 97 inches (2,464 mm)
  • Surface area: 1,886 square inches (12,168 square cm)
  • Construction: 10 gauge abrasion-resistant steel with rubber seal flaps
  • Skids/Dirt shoes: Tungsten carbide skids
  • Operating Direction: Forward & reverse
  • Suspension Head/Main Broom: 2 trailing arms; 4 adjustable springs
  • Control: Hydraulic raise & lower
  • Hopper connection: Two 10 inch (254 mm) hoses
  • Cleaning assist: Manual clean
  • Optional configuration: Curb blower instead of gutter broom

Standard Sweeper Engine

  • Make: B&G Vanguard Big Block; Air cooled
  • Type: 2 cylinder air cooled gasoline
  • Displacement: 54.68 cubic inches (0.9 L)
  • Horsepower: 25 hp (19 kw) @ 3600 rpm
  • Torque: 52.2 ft lb (70.8 Nm) @ 2200 rpm
  • Air cleaner: Dual Element
  • Oil filter: Full-flow spin-on
  • Stroke: 3.07 inches (78 mm)
  • Bore: 3.37 inches (86 mm)
  • Safety shutdown: Automatic
  • Throttle control: Electronic
  • Protection: Shielded
  • Optional engine: Kohler; Honda

Control System

  • Controls: Backlit sealed rocker switches; Throttle control; Gooseneck LED panel light
  • Instrumentation: Tachometer; Hourmeter
  • Voltage: 12 volt
  • Alternator: 120 amp
  • Circuit breakers: Resettable type

Hydraulic System

  • Type: (Optional) Fixed displacement gear
  • Pump capacity: 8 gpm (30 lpm) @ 1800 rpm (30 lpm) per section for 16 gpm total
  • Drive: Belt
  • Max. pressure: 2250 psi (156 bar)
  • Reservoir: 3 gal (11.4 l)
  • Filter: 10 micron; spin on
  • Suction strainer: 100 mesh
  • Protection: Pressure relief valve
  • Controls: Electro-hydraulic

Fan System

  • Type: Closed-face radial Whisperwheel
  • Drive: Direct via multi groove belt
  • Construction: Welded abrasion-resistant steel
  • Balance: Less than 1.5 grams on 2 sides
  • Diameter: 24 inches (610 mm)
  • Housing lining: Bolt-in corded rubber
  • Mounting: Pillow block bearings
  • Vacuum enhancement: Fan leaf bleeder door for heavy/light material with in-cab indicator

Brooms

  • Type: Cupped Poly Wafer Type
  • Location: Left forward of pickup head
  • Diameter: 36 inches (914 mm)
  • Drive: Hydraulic
  • Suspension: Torque-sensing spring
  • Wear adjustment: Automatic
  • Down Pressure: Manual
  • Speed: Constant; non-reversing
  • Segments: 1, disposable
  • Damage control: Object avoiding lateral flexibility
  • Visibility: Parabolic mirror optional

Debris Hopper

  • Volume capacity: 2.0 cubic yards (1.53 cubic m)
  • Construction: Stainless
  • Dump angle: 88 degrees
  • Floor angle: 0 degrees
  • Lifting: Twin hydraulic cylinders
  • Dump door: Manual open, close at rear
  • Inspection: 1 door on each side of hopper
  • Dump height: 69 inches (1,753 mm)
  • Debris screens: Drop down
  • Safety: Dual body props; 4 way LED flashing lights; rear view camera; backup alarm
  • Storage: Shovel storage; Tool box and rear trash bag rack optional

Dust Control System

  • Type: Optional electric diaphragm pump with run dry capable
  • Capacity: 12 gal (45 L) to 25 gal
  • Tank construction: Polyethylene
  • Filter: 50 mesh; Cleanable
  • Fill diameter: 3 inches (76.2 mm)
  • Fill hose: Optional
  • Controls: Electric; in-cab
  • Nozzles: 2 at broom; 1 at sweeping head; 2 inside hopper
  • Water level Indicator: At water tank
  • Water pressure: Gravity feed; 70 PSI

Backup Hydraulic System

  • Type: N/A
  • Function: N/A

Miscellaneous

  • Paint: One coat of sealer/primer and two coats of Dupont Imron Elite polyurethane in standard white color; Special colors or graphics wrap optional
