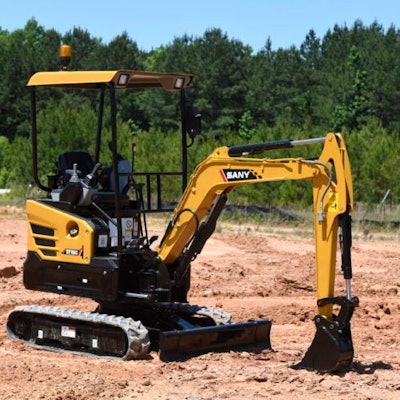

Lean, yet powerful, the SANY SY16C mini excavator offers versatility and reliability in a wide variety of settings. The SY16C is designed to be nimble for jobs in tight spaces, whether in forestry, indoor job sites or narrow urban locations. Environmentally friendly and cost efficient, this excavator will save you time while it saves you money with lower fuel costs and a design that makes it easy to service and maintain.
Minimal tail swing radius and independent boom swing allow operation in extremely confined spaces The independently developed intelligent control system matches pump output to available engine power for greater hydraulic system efficiency and lower fuel consumption
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY16C
OVERALL DIMENSIONS
HIDE Boom Length 1810 mm 5' 11 Stick (Arm) Length 1130 mm 3' 8 Transport Length 3575 mm 11' 9 Transport Width 980/1350 mm 3' 3 / 4' 5 Transport Height 2420 mm 7' 11 Upper Structure Width 980 mm 3' 3 Cab Height Blade Height 270 mm 11 Track Width (standard shoe) 230 mm 9 Track Gauge 750/1120 mm 2' 6 / 3' 8 Ground Clearance (minimum) 180 mm 7 Tail Swing Radius 920 mm 3' 0 Track Length on Ground 1220 mm 4' 0 Track Length 1585 mm 5' 2
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 1825 kg 4,023 lb Ground Pressure 29.1 kPa 4.2 psi
Engine Yanmar 3TNV74F
Displacement 1.0 L 60.6 in3 Gross Power 11.2 kW 15.0 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 48.0 L/min 12.7 gal/min Operating Pressure (maximum) 24.5 MPa 3553 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston
Travel Pressure (maximum) 24.5 MPa 3553 psi Travel Speeds (maximum) 2.1 / 3.7 km/hr 1.3 / 2.3 mph Travel Effort (maximum) 15.6 kN 3,507 lbf Grade Capability 35°
Swing Motor Axial Piston
Swing Pressure (maximum) 16.2 MPa 2350 psi Swing Speed (maximum) 10 rpm
Undercarriage (standard) Belted Rubber Track
Track Shoe Width (standard) 230 mm 9 Track Rollers (per side) 3 Carrier Rollers (per side)
WORKING RANGE
HIDE Boom Length 1810 mm 5' 11 Stick (Arm) Length 1130 mm 3' 8 Maximum Digging Height 3665 mm 12' 0 Maximum Dumping Height 2635 mm 8' 8 Maximum Digging Depth 2360 mm 7' 9 Maximum Vertical Wall Digging Depth 2215 mm 7' 3 Maximum Reach at Ground Level 4000 mm 13' 1
