SY26U EXCAVATOR

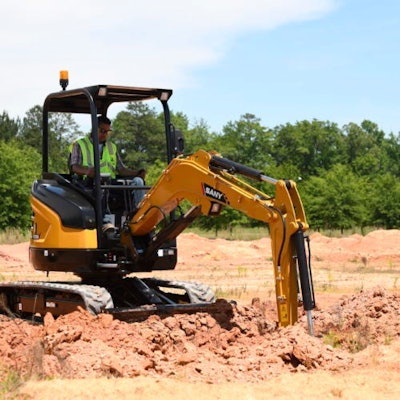

Dependable and easy to operate, the SANY SY26U zero tail swing mini excavator with boom swing is made to bring big performance to narrow and confined spaces. Its lightweight design and compact form make it versatile in the field, and easy access to important maintenance points helps reduce maintenance time so you can crush deadlines.
Zero tail swing radius and independent boom swing allow operation in extremely confined spaces The independently developed intelligent control system matches pump output to available engine power for greater hydraulic system efficiency and lower fuel consumption
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE
MODEL SY26U
OVERALL DIMENSIONS
HIDE Boom Length 2100 mm 6' 11 Stick (Arm) Length 1300 mm 4' 3 Transport Length 4285 mm 14' 1 Transport Width 1550 mm 5' 1 Transport Height 2430 mm 8' 0 Upper Structure Width 1375 mm 4' 6 Cab Height Blade Height 300 mm 12 Track Width (standard shoe) 300 mm 12 Track Gauge 1250 mm 4' 1 Ground Clearance (minimum) 290 mm 11 Tail Swing Radius 775 mm 2' 7 Track Length on Ground 1560 mm 5' 1 Track Length 1960 mm 6' 5
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 2760 kg 6,085 lb Ground Pressure 25.5 kPa 3.7 psi
Engine Yanmar 3TNV80F
Displacement 1L 62.6 in3 Gross Power 14.6 kW 19.6 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 72.0 L/min 19.0 gal/min Operating Pressure (maximum) 24.5 MPa 3553 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 24.5 MPa 3553 psi Travel Speeds (maximum) 2.4 / 4.5 km/hr 1.5 / 2.8 mph Travel Effort (maximum) 20.0 kN 4,496 lbf Grade Capability 35°
Swing Motor Axial Pison with Swing Brake
Swing Pressure (maximum) 19.6 MPa 2843 psi Swing Speed (maximum) 10 rpm
Undercarriage (standard) Belted Rubber Track
Track Shoe Width (standard) 300 mm 12 Track Rollers (per side) 3 Carrier Rollers (per side) 1
WORKING RANGE
HIDE Boom Length 2100 mm 6' 11 Stick (Arm) Length 1300 mm 4' 3 Maximum Digging Height 4410 mm 14' 6 Maximum Dumping Height 3100 mm 10' 2 Maximum Digging Depth 2820 mm 9' 3 Maximum Vertical Wall Digging Depth 2585 mm 8' 6 Maximum Reach at Ground Level 4850 mm 15' 11 Minimum Swing Radius 2110 mm 6' 11
