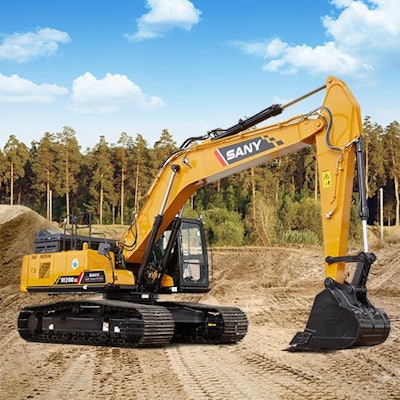

SY215C EXCAVATOR
Find the power and durability you need in your excavator when you choose SANY's SY215C. Powered by a Cummins Diesel engine, the SY215C features fuel-efficient technology that can save as much as 10% on your fuel costs. With SANY's optimized positive flow hydraulic system that improves operating efficiency by as much as 5%, you can get more work done in less time and for less money in even the toughest conditions with the SY215C medium excavator.
Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications. Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
WHY SANY MEDIUM EXCAVATORS?
Longer, stronger and built in Peachtree City, Georgia, SANY’s medium excavators are outstanding performers on a jobsite as they keep your crews running at peak performance. They are an engineered balance of hydraulic power, size and speed that makes them highly efficient and productive machines. Operators appreciate the level of comfort, high visibility and control at their fingertips. Like all SANY excavators, they come loaded with all the standard features you need and are backed by the industry’s strongest standard warranty. That’s 5 years or 5,000 hours of proven reliability.
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY215C
OVERALL DIMENSIONS
HIDE Boom Length 5700mm 18' 8 Stick (Arm) Length 2925mm 9' 7 Transport Length 9728mm 31' 11 Transport Width 3180mm 10' 5 Transport Height 3370mm 11' 1 Upper Structure Width 2710mm 8' 11 Cab Height Blade Height Track Width (standard shoe) 800mm 31 Track Gauge 2380mm 7' 10 Ground Clearance (minimum) 480mm 19 Tail Swing Radius 2890mm 9' 6 Track Length on Ground 3640mm 11' 11 Track Length 4450mm 14' 7
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 23550 kg 51,919 lb Ground Pressure 36.3 kPa 5.3 psi Engine Cummins QSB6.7 Displacement 6.7 L 408.9 in3 Gross Power 122 kW 163.6 HP
Hydraulics Positive Flow Control with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 444.0 L/min 117.3 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum) 37.3 MPa 5410 psi
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.1 / 5.3 km/hr 1.9 / 3.3 mph Travel Effort (maximum) 180.0 kN 40,466 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 27.5 MPa 3989 psi Swing Speed (maximum) 10.9 RPM
Undercarriage (standard) Steel Track
Track Shoe Width (standard) 800 mm 31 Track Rollers (per side) 9 Carrier Rollers (per side) 2
WORKING RANGE
HIDE Boom Length 5700 mm 18' 8 Stick (Arm) Length 2925 mm 9' 7 Maximum Digging Height 9180 mm 30' 1 Maximum Dumping Height 6670 mm 21' 11 Maximum Digging Depth 6600 mm 21' 8 Maximum Vertical Wall Digging Depth 5980 mm 19' 7 Maximum Reach at Ground Level 10307 mm 33' 10 Minimum Swing Radius 3730 mm 12' 3
