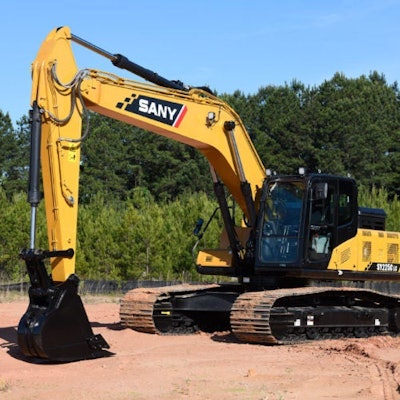

SY225C EXCAVATOR
OPERATING WEIGHT 54,013 LB 24,500 kg
GROSS POWER 163.6 HP 122 kW
DIG DEPTH 21' 8 6,600 mm
SANY's SY225C medium excavator is earthmoving equipment built for power, stability and performance, boasting a reinforced undercarriage and additional counterweight, making it a versatile tool carrier. This new excavator adapts in the most rugged environments with bucket breakout force of 28,551 lbf and an extended track-to-surface length of 12' 7.
Powerful and robust powertrain with Cummins and Kawaski Reliable and well know Kawasaki hydraulic components When equipped with quick coupler, operators can easily reduce the time it takes to change work tools giving convenience and flexibility in the field Extended steel track length allows operator more stability in challenging environments
WHY SANY MEDIUM EXCAVATORS?
Longer, stronger and built in Peachtree City, Georgia, SANY’s medium excavators are outstanding performers on a jobsite as they keep your crews running at peak performance. They are an engineered balance of hydraulic power, size and speed that makes them highly efficient and productive machines. Operators appreciate the level of comfort, high visibility and control at their fingertips. Like all SANY excavators, they come loaded with all the standard features you need and are backed by the industry’s strongest standard warranty. That’s 5 years or 5,000 hours of proven reliability.
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY225C
OVERALL DIMENSIONS
HIDE Boom Length 5700 mm 18' 8 Stick (Arm) Length 2925 mm 9' 7 Transport Length 9728 mm 31' 11 Transport Width 3390 mm 11' 1 Transport Height 3370 mm 11' 1 Upper Structure Width 2710 mm 8' 11 Cab Height 3050 mm 10' 0 Blade Height Track Width (standard shoe) 800 mm 31 Track Gauge 2590 mm 8' 6 Ground Clearance (minimum) 480 mm 19 Tail Swing Radius 2890 mm 9' 6 Track Length on Ground3830 mm 12' 7 Track Length 4636 mm 15' 3
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 24,500 kg 54,013 lb Ground Pressure 36.1 kPa 5.2 psi Engine Cummins QSB6.7 Displacement 6.7 L 408.9 in3 Gross Power 122 kW 163.6 HP
Hydraulics Positive Flow with Pilot Control
Main Hydraulic Pump Axial Piston Variable Displacement
Operating Flow (maximum) 444.0 L/min 117.3 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum) 37.3 MPa 5410 psi Travel Motor Axial Piston with Park Brake Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.3 / 5.1 km/hr 2.1 / 3.2 mph Travel Effort (maximum) 180.0 kN 40,466 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 28.0 MPa 3989 psi Swing Speed (maximum) 10.9 RPM Undercarriage (standard) Steel Track Track Shoe Width (standard) 800 mm 31 Track Rollers (per side) 9 Carrier Rollers (per side) 2
WORKING RANGE
HIDE Boom Length 5700 mm 18' 8 Stick (Arm) Length 2925 mm 9' 7 Maximum Digging Height 9180 mm 30' 1 Maximum Dumping Height 6670 mm 21' 11 Maximum Digging Depth 6600 mm 21' 8 Maximum Vertical Wall Digging Depth 5980 mm 19' 7 Maximum Reach at Ground Level 10307 mm 33' 10 Minimum Swing Radius 3730 mm 12' 3
