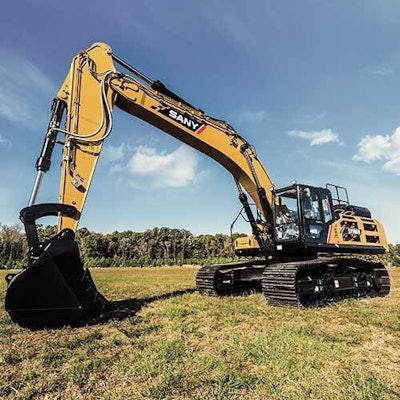

SY500H EXCAVATOR

SANY's most powerful large excavator, the SY500H is a powerhouse, boasting 400 HP and a digging depth of over 25 feet. A durable Cummins diesel engine delivers the performance you need for any job, while the selectable working modes allow you to match performance to the job application to balance power and efficiency. Positive flow hydraulics further improve operating efficiency, while fuel-efficient design features help you save on fuel costs.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications

A high-performance cooling system equipped with electronic control fan clutch provides clean, quiet operation

Selectable working modes match machine performance to the application, maximizing productivity and minimizing operating costs

Removable counterweight reduces travel restriction and lowers transportation expenses

WHY SANY LARGE EXCAVATORS?

Bigger is better. Built to endure the hardest working environments, SANY's large excavators have been newly redesigned for high performance based on operator feedback. New for 2023, the SY385C and SY750H feature a dedicated pump for specialized attachments, an updated cab with ergonomic controls and a large, touchscreen display, blind side camera and push button start. The entire family runs strong on powerful, reliable Cummins engines.

THE INVESTMENT THAT KEEPS ON RETURNING

Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.

SAFETY

At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.

SERVICE

When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.

WE’VE GOT YOUR BACK

To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.

SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY500H

OVERALL DIMENSIONS

HIDE Boom Length 7000mm 23' ft Stick (Arm) Length 3350mm 11' ft Transport Length 12194mm 39' 11 Transport Width 3640mm 11' 11 Transport Height 3874mm 12' 8 Upper Structure Width 3292mm 10' 10 Cab Height 3423mm 11' 3 Blade Height Track Width (standard shoe) 900mm 35 Track Gauge 2740mm 9' Ground Clearance (minimum) 560mm 22 Tail Swing Radius 3850mm 12' 8 Track Length on Ground 4412mm 14' 6 Track Length 5459mm 17' 11


TECHNICAL SPECIFICATIONS

HIDE Operating Weight 54500 kg 120,152 lb Ground Pressure 59.0 kPa 8.6 psi Engine Cummins QSG12 Displacement 11.8 L 720.1 in3 Gross Power 298 kW 400 HP


Hydraulics Positive Flow Control with Pilot Control

Main Hydraulic Pump Axial Piston - Variable Displacement

Operating Flow (maximum) 720.0 L/min 190.2 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum) 37.3 MPa 5410 psi


Travel Motor Axial Piston with Park Brake

Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.4 km / 5.2 hr 2.1 / 3.2 mph Travel Effort (maximum) 214.0 kN 48,109 lbf Grade Capability 35°


Swing Motor Axial Piston with Swing Brake

Swing Pressure (maximum) 27.5 MPa 3989 psi Swing Speed (maximum) 8.0 RPM


Undercarriage (standard) Steel Track

Track Shoe Width (standard) 35 900 mm Track Rollers (per side) 9 Carrier Rollers (per side) 2


WORKING RANGE

HIDE Boom Length 7000 mm 23' ft Stick (Arm) Length 3350 mm 11' ft Maximum Digging Height 10929 mm 35' 10 Maximum Dumping Height 7647 mm 25' 1 Maximum Digging Depth 7705 mm 25' 3 Maximum Vertical Wall Digging Depth 6278 mm 20' 7 Maximum Reach at Ground Level 12035 mm 39' 5
