Overview
Comfortable. Performance. Smart.

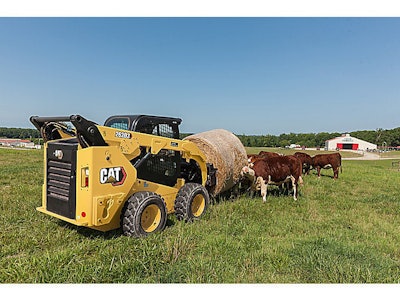

The Cat 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
Benefits
15% Additional Space for More Operator Comfort•Redesigned, More Comfortable Cab•Wider opening door for easier machine entry30% Additional Capacity in a New Line of Buckets•New Industrial Performance Buckets
SMART
•Providing the Next Level Machine and Tool Compatibility•Integrated SMART technology to automate complex attachments- INDUSTRY FIRSTS- Attachment recognition- Tailors controls- Grade Assist
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Cat “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. *Photo shown may vary from machine referenced.
ENGINE
Gross Power - SAE J1995 74.3 HPNet Power - SAE 1349 72.9 HPDisplacement 203 inStroke 4.7 inBore 3.7 inPeak Torque - 1,500 rpm - SAE J1995 195 ft·lbfNet Power - ISO 9249 73.7 HPEngine Model Cat C3.3B DIT (turbo)Net Flywheel Power 72.9 HP
OPERATING SPECIFICATIONS
Rated Operating Capacity 2700 lbRated Operating Capacity with Optional Counterweight 3055 lbTipping Load 5400 lbBreakout Force - Tilt Cylinder 7355 lbNote Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 ¬ó 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
WEIGHTS
Operating Weight 8296 lbNote Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 ¬ó 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
DIMENSIONS
Wheel Base 49.2 inLength - With Bucket on Ground 146.2 inLength - Without Bucket 117.9 inHeight - Top of Cab 83.1 inVehicle Width over Tires 66 inMaximum Overall Height 157.8 inBucket Pin Height - Maximum Lift 124.9 inBucket Pin Height - Carry Position 7.9 inReach - Maximum Lift/Dump 30.9 inClearance at Maximum Lift and Dump 93.7 inGround Clearance 8.9 inDeparture Angle 26°Bumper Overhang - Rear Axle 42.6 inMaximum Dump Angle 51°Rack Back Angle - Maximum Height 84°Bucket Pin Reach - Maximum Lift 15.5 inTurning Radius from Center - Bucket 85.9 inTurning Radius from Center - Coupler 55.2 inNote Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 — 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).Maximum Reach - With Arms Parallel to Ground 50.9 inTurning Radius from Center - Machine Rear 71.1 in
HYDRAULIC SYSTEM
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psiHydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 76 HPHydraulic Flow - Standard - Hydraulic Power (Calculated) 44 HPHydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psiHydraulic Flow - Standard - Loader Hydraulic Flow 23 gal/minHydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 32 gal/min
CAB
ROPS ISO 3471:2008FOPS ISO 3449:2005 Level I
POWER TRAIN
Travel Speed - Forward or Reverse - Two Speed Option 11 mile/hTravel Speed - Forward or Reverse - One Speed 7.7 mile/h
SERVICE REFILL CAPACITIES
Chain Box - Each Side 3.3 gal (US)Cooling System 3.7 gal (US)Engine Crankcase 3 gal (US)Fuel Tank 27.7 gal (US)Hydraulic System 13.7 gal (US)Hydraulic Tank 10.3 gal (US)
NOISE LEVEL
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.Inside Cab* 81 dB(A)Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.Outside Cab** 101 dB(A)Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
AIR CONDITIONING SYSTEM (IF EQUIPPED)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
