General Information

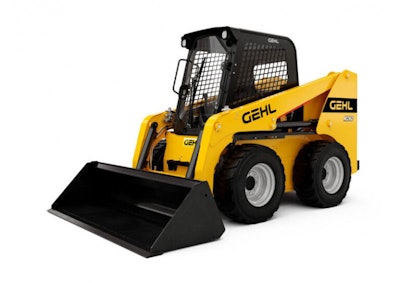

The R260 is largest radial lift skid loader in GEHL's offering, and it doesn't disappoint. With 1,179 kg. of rated operating capacity, it would be hard to find an application tougher than this machine. Various control options give owners the ability to select what is most comfortable to them, making them even more productive throughout a long day.

BrandGEHLMarketsAgriculture, Construction

AssortimentsRegionR1Country excluded from the regionTurkey

CapacitiesRated Operating Capacity2599 lbsRated Operating Capacity with Optional Counterweight2780 lbsFuel tank22 US galDisplacement1 US gal

Overall Operating Height - Fully Raised161 inDump reach - Full height27 inOverall length with bucket143 in

AssortimentsTechnical characteristicsCapacitiesWeight and dimensionsRear departure angle25 °Overall Operating Height - Fully Raised161 inOverall Height to Top of ROPS81 inOverall length with bucket143 inDump height94 inDump reach - Full height27 inSeat to ground height40 inOverall width less bucket67 inOverall length - Less Bucket111 inClearance Circle - Rear64 inClearance Radius - Front with Bucket90 inHeight to Hinge Pin – Fully Raised123 inBucket Width70 inClearance Circle - Front with Bucket90 inClearance Circle - Front without Bucket56 inDump angle at full height40 °Unladen weight8199 lbsGround clearance8 inStandard tyres12.00x16.5 HD

PerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)8 mph

EngineEngine model4TNV98CT-NMSLV Stage VMax. torque / Engine rotation294 Nm at 2500 rpmStarter (kW)3 kWGross Power (kW)53.70 kWEngine brand / normYanmar / Stage VNet Power (kW)52.70 kWBattery12 V

HydraulicsReservoir Capacity Hydraulics8 US galHigh-Flow Auxiliary Hydraulics – Option132.50 l/minStandard flow - Auxiliary hydraulics90 l/min

Noise and vibrationEnvironmental noise (LwA)101 dB(A)Whole-Body Vibration (ISO 2631-1)0.96 m/s²Vibration to whole hand/arm1.50 m/s²

Performance loaderRollback at ground28 °
