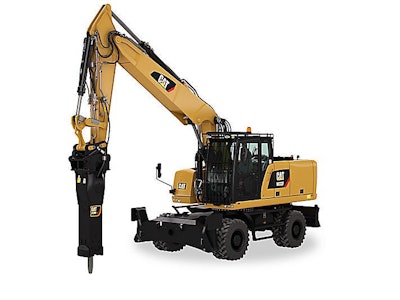

Wheel Excavators M322F (2017)
KEY SPECS
Engine Model Cat C7.1
Net Power 169 HP
Maximum Travel Speed 19 mile/h
Overview
Multi-Tasking Power with Quiet and Control
With fast cycle times, excellent lift capacity and high bucket and stick forces, the Cat M322F Wheeled Excavator is the machine to go to to handle a range of tasks. A quiet, comfortable cab, boom and stick options and a range of work tools allow you to customize this machine to nearly any job.
Benefits
Easy to Service
Reduce owning and operating costs with quick, easy-to-do maintenance.
Up To 10% Fuel savings
Lower your fuel bill without impacting your productivity.
Easy to use
The simplicity of the M322F let's you complete your work with ease.
FEATURES AT A GLANCE
Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent - no action required from the operator and no stopping for regeneration.Up to a 10% fuel consumption reduction vs. previous model with the same productivity.Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.On-Demand Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.Dedicated swing pump, allowing faster, smoother combined movements.Highly mobile, the M322F can travel up to 30 km/h (19 mph).
Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.Plug and Play design, with complete integration of the whole portfolio of Cat attachments.Auxiliary hydraulics, including high pressure.Readiness for Cat Pin Grabber quick coupler (with lines and circuits).The monitor can allow ten hydraulic pump flow and pressure settings at the same time.Joystick buttons/sliders can be set up per tool as desired.Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.Couplers let you swap between attachments in seconds without leaving the cab.
A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom, joystick steering are available.Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.Ergonomic cab with controls kept to a minimum and conveniently located.Split-screen monitor to allow quick view of both cameras on the same display
PRODUCT SPECIFICATIONS FOR M322F (2017)
cloud_
ENGINE
Bore 4.1 inStroke 5.3 inDisplacement 427.8 inMaximum Torque - 1,400 rpm 612 ft·lbfEngine Power - Maximum Net - ISO 9249/SAE J1349 126 kW (169 hp [171 hp]*)Engine Power - Maximum Gross - ISO 14396 128.8 kW (173 hp [175 hp]*)Emissions Meets Tier 4 Final/Stage IV emission standards.Number of Cylinders - In Line 6Ratings 1700 r/minNote *Metric values.
WEIGHTS
One-Piece Boom - Front and Rear Outriggers 47884 lbVA Boom - Front and Rear Outriggers 49229 lbOne-Piece Boom - Rear Dozer, Front Outriggers 47377 lbOperating Weight* 21 490 to 22 330 kg (47,377 to 49,229 lb)Note *Includes medium stick, 3500 kg (7,716 lb) counterweight, full fuel tank, operator, quick coupler (250 kg/551 lb), bucket (780 kg/1,720 lb), dual pneumatic tires. Weight varies depending on configuration.Counterweights 3500/4700 kg (7,716/10,362 lb)VA Boom - Rear Dozer, Front Outriggers 48722 lb
SWING MECHANISM
Swing Speed 9 r/minMaximum Swing Torque 43988 ft·lbf
HYDRAULIC SYSTEM
Maximum Pressure - Auxiliary Circuit - Medium Pressure 2683 psiMaximum Pressure - Auxiliary Circuit - High Pressure 5076 psiSwing Mechanism 4496 psiMaximum Pressure - Implement Circuit - Heavy Lift 5366 psiMaximum Pressure - Implement Circuit - Normal and Travel Circuit 5076 psiSystem 107 gal (US)Maximum Flow - Auxiliary Circuit - Medium Pressure 13.2 gal/minMaximum Flow - Swing Mechanism 31.2 gal/minMaximum Flow - Implement/Travel Circuit 94 gal/minMaximum Flow - Auxiliary Circuit - High Pressure 66 gal/min
DRIVE
Maximum Travel Speed 19 mile/h
TRANSMISSION
Drawbar Pull 28550.7 lbfMaximum Forward/Reverse - 2nd Gear 19 mile/hMaximum Gradeability (25 000 kg/55,115 lb) 70%
SERVICE REFILL CAPACITIES
Fuel Tank - Total Capacity 111 gal (US)Diesel Exhaust Fluid Tank 9.1 gal (US)
UNDERCARRIAGE
Ground Clearance 14.2 in
WORKING RANGES
VA Boom - 2500 mm (8'2) Stick Length: Dump Height 23.67 ftVA Boom - 2500 mm (8'2) Stick Length: Digging Height 34.58 ftVA Boom - 2900 mm (9'6) Stick Length: Digging Height 35.58 ftOne-Piece Boom - 2500 mm (8'2) Stick Length: Digging Height 30.75 ftVA Boom - 2900 mm (9'6) Stick Length: Reach at Ground Level 33.42 ftOne-Piece Boom - 2500 mm (8'2) Stick Length: Reach at Ground Level 32.5 ftOne-Piece Boom - 2900 mm (9'6) Stick Length: Reach at Ground Level 33.83 ftOne-Piece Boom - 2900 mm (9'6) Stick Length: Digging Depth 21.17 ftVA Boom - 2900 mm (9'6) Stick Length: Digging Depth 21.83 ftVA Boom - 2500 mm (8'2) Stick Length: Digging Depth 20.5 ftOne-Piece Boom - 2500 mm (8'2) Stick Length: Dump Height 20.5 ftNote Range values are calculated with GD bucket 1200 mm (48 in), 1.19 m3 (1.55 yd3) with tips K080 and quick coupler with a tip radius of 1688 mm (5'6).One-Piece Boom - 2900 mm (9'6) Stick Length: Digging Height 31.5 ftVA Boom - 2900 mm (9'6) Stick Length: Dump Height 24.67 ftOne-Piece Boom - 2900 mm (9'6) Stick Length: Dump Height 21.25 ftOne-Piece Boom - 2500 mm (8'2) Stick Length: Digging Depth 19.83 ftVA Boom - 2500 mm (8'2) Stick Length: Reach at Ground Level 32.17 ft
